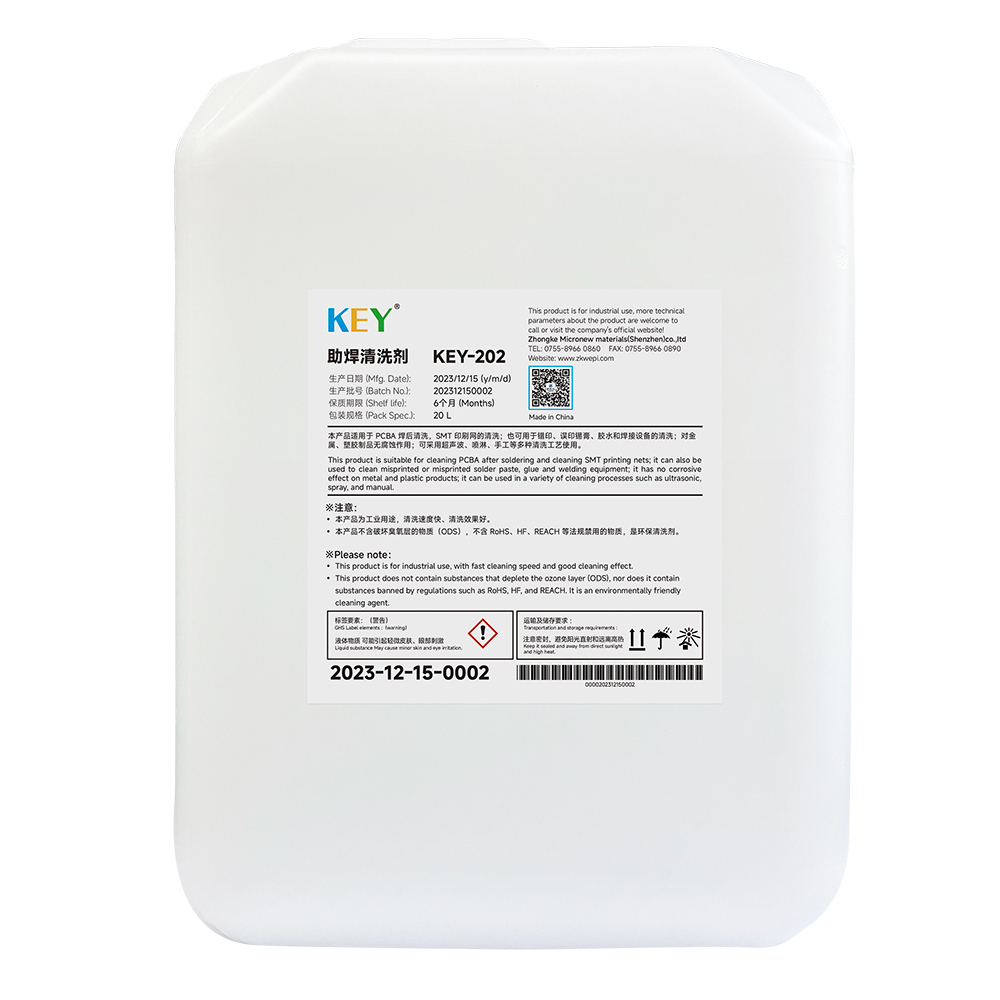

KEY-202 Flux Remover

Product Highlights

Product Features?

It has good decontamination ability and fast cleaning speed, and is an ideal cleaning agent for the electronics industry.

It has low surface tension, strong penetration and fast cleaning speed.

It is easy to operate and non-corrosive.

It dries quickly after cleaning and has good surface cleanliness.

It does not produce toxic and harmful substances and is a green and environmentally friendly product.

Scope of application?

This product is suitable for cleaning PCBA after soldering and cleaning SMT printing nets. It can also be used to clean PCB boards with misprinted solder paste and glue. It has no corrosive effect on metal and plastic products. It can be used in a variety of cleaning processes such as ultrasonic, spraying, and manual.

Physical and Chemical Parameters?

Instructions for use

Ultrasonic cleaning:?Adjust the vibration frequency of the ultrasonic wave and control the appropriate cleaning temperature to make the cleaning agent reach the best cleaning state. The parts to be cleaned should be completely immersed in the cleaning agent and placed at an appropriate spacing.

Spray cleaning:?Adjust the flow rate of the cleaning agent, the spray pressure, and control the appropriate cleaning temperature to make the cleaning agent reach the best cleaning state. The parts to be cleaned should pass through the best atomization area.

Manual cleaning:?Use an anti-static brush, dust-free cloth, or toothbrush to dip the cleaning agent on the surface of the parts to be cleaned, and brush repeatedly to remove the dissolved dirt from the parts to be cleaned.

Soaking cleaning:?Place the cleaning agent in a suitable container and the parts to be cleaned should be completely immersed in the cleaning agent.

Replacement frequency: After a period of use, the residue in the cleaning agent will increase, causing the cleaning force to decrease, and the cleanliness of the parts after washing will deteriorate. The cleaning agent in the tank needs to be added and replaced regularly (depending on the number of parts to be cleaned).

Cleaning time:?5 to 30 minutes is recommended, depending on the specific cleaning process and cleanliness requirements.

Please Note

After opening the product and taking out the used part, the lid must be closed tightly to prevent the detergent from volatilizing.

Do not put used detergent and unused detergent in the same packaging barrel. After the detergent is opened, if there is still detergent left in the barrel, it cannot be left open to the air and the lid should be tightened as soon as possible.

The container containing the detergent should be kept clean to prevent dirt and other substances from mixing into the detergent and affecting the quality of the detergent.

Packing Specifications?

20L、50L

Storage and Transportation Requirements

Transport as non-hazardous chemicals and non-corrosive chemicals, and store at room temperature.

Pay attention to sealing, avoid direct sunlight and high heat.

Sealed warranty period 12 months.
